type-as-electronic control as -ChiSi new material

Transparent and matte switch

Smart film is a special kind of switchable film that can be applied to any existing glass, indoors or outdoors. The technology used in its creation allows the user to change the surface of this electric window tint from clear to frosted — with the help of pressing a button on the remote control or in the app on your smartphone.

As one of the earliest smart pdlc film manufactures, In the past few years TYPE-AS has been committed to the R & D and sales of Architecture smart film. With the popularity of new energy vehicles, TYPE-AS is committed to the promotion of Automotive sunroof smart film, Which greatly meets people's needs for privacy, heat insulation and UV rejection.

WORKING PRINCIPLE

When the power is on, two PET-ITO conductive film functions as planar electrodes, which makes the liquid crystal droplets orderly arranged perpendicular to the film surface, whereby the parallel light passes through the liquid crystal layer without being reflected and refracted, the light transmits to whole film, so smart film appears transparent.

When the power is off, the liquid crystal droplets are in disordered arrangement state, when parallel light passes through the polymer and irradiate to the liquid crystal material, because of refractive index of the liquid crystal droplets is lower than the other outer polymers, light in the surface of liquid crystal droplets is diffused and scattered. the whole film becomes opaque, appears frosted.

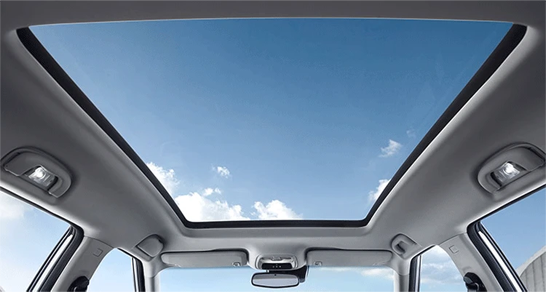

SUNROOF

AS-X

Item No.	Mode	Mode	Unit	Tolerance	Spec
Optical	Visible Light Transmission	On	%	±1	89
	Visible Light Transmission	Off	%	/	>55
	Haze Coefficient	On	%	±0.5	4.3
	Haze Coefficient	Off	%	/	>96
Electrical	Viewing Angle	On	。	/	>140
	Viewing Angle	On	AC/V	/	48~65 (50/60hz)
	Response time	On→Off	MS	/	≤200
	Response time	On→Off	MS	/	≤10
	Power Consumption	On	W/m2	/	≤5
Shrinkage	TD	/	%	/	≤0.2
Shrinkage	MD	/	%	/	≤0.9
Operate Mode		On	/	/	Transparent
Operate Mode		Off	/	/	Opaque
Work Layer Thickness		/	μm	±5	560
Scratch resistance		/	H	/	3.0
UV Rejection		On/Off	%	/	≥99
Lifespan		On	h	/	>80000
Storage Humidity		/	%	/	20~60
Working Temperature		/	%	/	-20~65℃
Storage Temperature		On	h	/	-20~60℃
Silicone layer Peel Strength		/	g	±2	10

*Product parameter data are tested and calculated using the NFRC standard recommended by IWFA International Window Film Association (based on 3mm glass)

WHY CHOOSE AS-X SMART ROOF

ONE - CLICK SWITCHING

Powe on---Transparent, Power off---Qpaque White. The Visible LIght Transmission of AS-X Smart Roof Film is 89%, it less haze, ultra clear. So when power on, it will hide, keep your vehicle relatively cooler so that you will embrace a brand-new driving experience. Let you enjoy the unique experience by the oversized sunroof.

SUPER HEAT & UV PROTECTION

Hot, sunny days can quickly overheat the interior of your car. AS-X Smart Roof Film reduce 99% heat due to the absorptive nano-ceramic technology. And at the same time, it also blocks up to 99% of harmful UV rays, keeping you cool and protected for a more comfortable ride.

PROFESSIONAL INSTRUMENT, PRECISE CUTTING

AS-X Smart Roof Film is computer precut with the finest equipment on the market and it will precisely fit your exact make, model, and year vehicle. Installed Car Model included: Tesla MODEL Y/MODEL 3, Porsche Taycan GTS, Cadillac SRX, Mercedes-benz Vito, Buick GL8, Lexsler, NiO EC6, Trumpchi M8, Audi A6 etc.

INCREASE SAFETY

AS-X Smart Roof Film will help to protect you by holding your window together if the glass is shattered in an accident. So you, your family and the contents of your car are safe in the event of an accident from the risk of flying glass.

HIGH WEATHER RESISTANCE

From our tested, the working temperature of AS-X Smart Roof Film is -20℃ ~ 95℃. In this temperature interval, the stability of the PDLC liquid crystal molecule remains good, and there is no translucent and other failures. It's weather resistance is more than 30% higher than normal smart film, and the waterproof performance reaches level 3, which can effectively resist water vapor invasion.

QUALITY GUARANTEED

AS-X Smart Roof Film is a product developed under the rigorous standard of IATF16949. Not only proof of the product quality, but also the IATF16949 certification is an affirmation of the service qualifications and upstream and downstream supply chain management capabilities.
