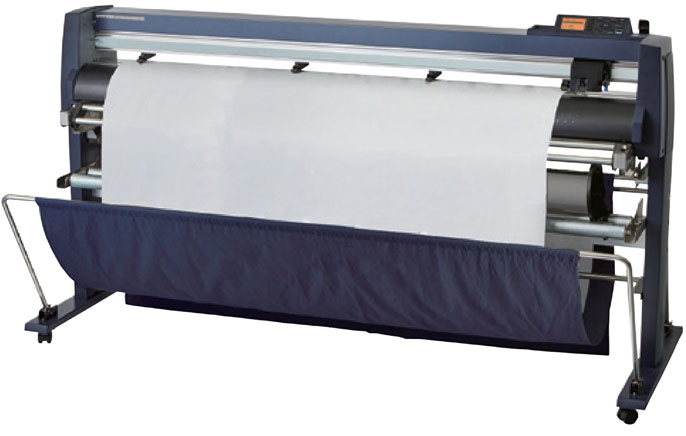

Film cutting machine

Specifications

Configuration:Grit rolling type

Drive method:Digital servo drive

Max. cutting area (W x L) (*1):1626mm × 50m

Cutting area of guaranteed accuracy (*1):

1607mm × 10m / 762mm × 15m

Mountable media width Max.:1850mm (72.8 inch）

Mountable media width Min.(*2) :50mm

Mountable roll media diameter:

76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)

Mountable roll media mass:24kg

Compatible take-up roll width:200 to 1626mm

Compatible take-up roll mass:20kg

Maximum cross cut width:1626m

Max. cutting speed:1485 mm/s at 45° direction

Axial acceleration:Max. 39.2m/s2at 45° direction

Cutting force:Max. 5.88N (600gf)

Minimum character size:

Approx. 5 mm alphanumeric (varies depending on character font and media)

Mechanical resolution:0.005mm

Programmable resolution:

GP-GL：0.1/0.05/0.025/0.01ｍｍ　HP-GL (*3)：0.025ｍｍ

Repeatability (*1):

Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)

Number of push rollers:4 rollers (Max. 5 (option))

Mountable number of tools:1 tool (mountable 2 tools (option))

Blade types:Supersteel

Pen types:Oil-based ballpoint pen, Water-based fiber-tip pen

Media types:

Thickness 0.25mm or less Marking film (PVC film / fluorescence / reflective)

Polyester film (on condition),

High Intensity reflective film (Diamond grade, Engineer grade) (*4)

Display:Graphic type LCD with back-light (240dots x 128dots), supports 10 languages

Interface:USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX

Buffer memory:2MB

Command sets:GP-GL / HP-GL™ (Set by command or auto-detect) (*3)

Compatible OS (*5) :Windows 11/10/8.1macOS 10.13 (High Sierra) to 13 (Ventura)

Power source:100 V to 240 V AC, 50 / 60 Hz

Power consumption:Max. 120W

Operating environment:10 to 35 ºC, 35 to 75 % R.H. (non-condensing)

Guaranteed accuracy environment:16 to 32 ºC, 35 to 70 % R.H. (non-condensing)

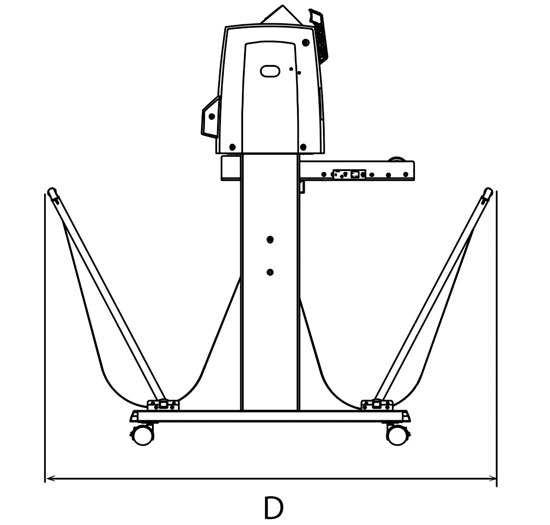

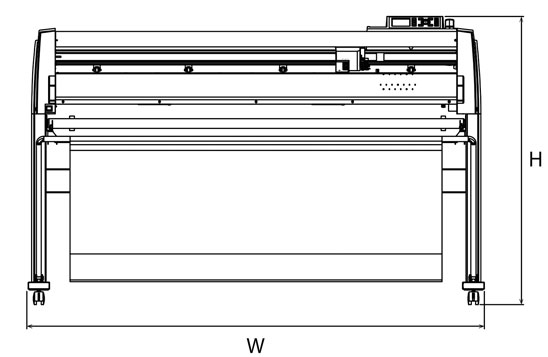

External dimensions (W x D x H) (*8):Approx. 2224ｘ1151ｘ1232 mm

Weight (approx.) (*8):70.0 kg

(88.5kg with installed automatic take-up roller)

automatic take-up roller)

Safety:PSE, UL/cUL, CE mark

EMC:VCCI Class A, FCC Class A, CE mark
